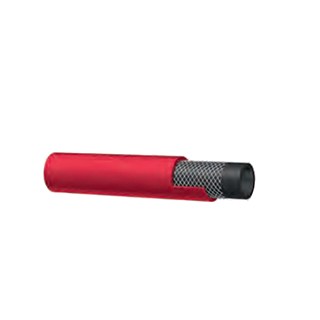

Pacific Hoseflex IH-RMP red rubber air and water hose cutaway — Supplier product image
Pacific Hoseflex IH-RMP reference family. The photograph shows its red cover, reinforcement and liner; confirm the selected size and assembly with your quote.
Open image at full size ↗ · Image source

Piping materials · Hose & flexible connections

Air hose

Air hose supplies compressed air to compatible tools and plant equipment.

Reference model / family: IH-RMP air / water hose reference

Common uses

Workshop tools, pneumatic equipment and mobile air supply.

Add this item to the rest of your list. KEPCO coordinates the supplier enquiries and confirms availability and lead time with your quote.

Product information

Specifications & documents

Download product guide (PDF)

IH-RMP air / water hose reference

Liner: Nitrile rubber
Reinforcement: Synthetic cord braid
Cover: Red rubber
Published temperature range: −25 to +100 °C; verify duty-specific derating

IH-RMP air / water hose reference
ID — mm	OD — mm	Mass — kg/m
5	12	0.16
6	13	0.17
8	15	0.2
10	17	0.24
12	21	0.34
16	26	0.53
19	29	0.6
25	36	0.8
32	44	1.28
38	53	1.49
51	63	1.65

Download this size table (CSV)

Reference configuration only. Dimensions and ratings apply to this documented series; the offered item is confirmed with your quote.

Technical references

Hose specification and dimensions · page 5 ↗Drawing / dimensions · Confirm document region for the quoted product · Current revision confirmed with quotation

Choose the right variant

Details to confirm

Inside diameter and length
Working pressure and temperature
Tool flow demand and coupling profile

Selection note

General air hose is not breathing-air hose. Specify any special service explicitly.

These details describe the product family. The offered item’s dimensions, materials, operating limits and required approvals are confirmed before you order.

Add to your quote list

Include what you know. Leave anything uncertain blank and we’ll help clarify it.

QuantityUnitCut length per piece (optional)

Bore / inside diameter — mmMeasure the clear opening; do not substitute the nominal size.Length per item — mSpecify each cut length or coil length, then use Quantity for the number required.End connectionsSpecify both ends and any male/female, thread, socket, flange or coupling details.

More specifications (optional)

Open these fields if you have measurements, a matching reference or a site specification.

Outside diameter — mmMeasure across the outside of the pipe or tube.Wall thickness — mmState whether measured or taken from the marked pipe specification.Hose constructionReinforcement, helix, braid, liner or tubing material.Required pressure / vacuum dutyState working pressure and vacuum separately, with units; include minimum bend radius if critical.Service / operating conditionsFluid, working pressure or vacuum, temperature and any required approvals.

Enter OD and wall thickness, where known, to calculate an indicative bore. Dimensions are in millimetres.

Additional requirementsView quote list

Have an existing part to match?

Send a photo, part number or description with your list. We’ll help identify it and follow up suitable suppliers.
